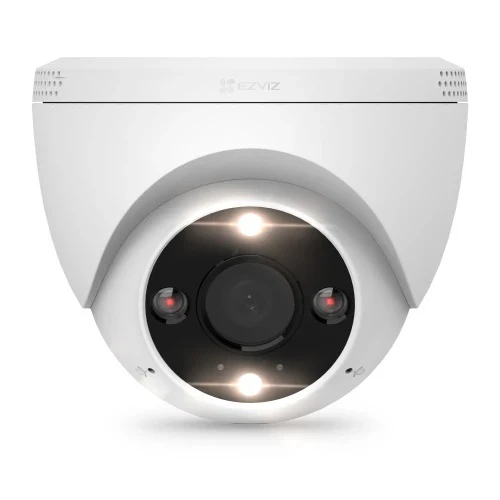

EZVIZ H4 2K- Security Cameras
EZVIZ H4 2K- Security Cameras (H4 2K) is suitable for WIFI CAMERA projects that need clear specifications, practical compatibility with CCTV, networking, or access control systems, and Do Link support in Egypt.
EZVIZ H4 2K
| Specifications | |
|---|---|
| Model | CS-H4-R201-1H3EKFL |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal) |
| DNR | 3D DNR |
| Lens Mount | M12 |
| Day & Night | IR-Cut filter with auto-switching |
| WDR | WDR |
| BLC | Supports |
| Night Vision | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max: 25fps; Self-Adaptive during network transmission |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 3Mbps |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; HD; Standard Adaptive bit rate. |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Support 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card storage (up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
| General | |
| IP Grade | IP67 |
| Operating Conditions | -30℃ ~ 50℃, humidity 95% or less (non-condensing) |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 8W |
| Dimensions | 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch) |
| Weight | 229 g (8.08 oz) |
| In the box | |
| In the box | - H4 2K Camera |
| - Power Adapter | |
| - Drill Template | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UKCA / RoHS / REACH / WEEE |
General
| Model | H4 2K |
|---|
