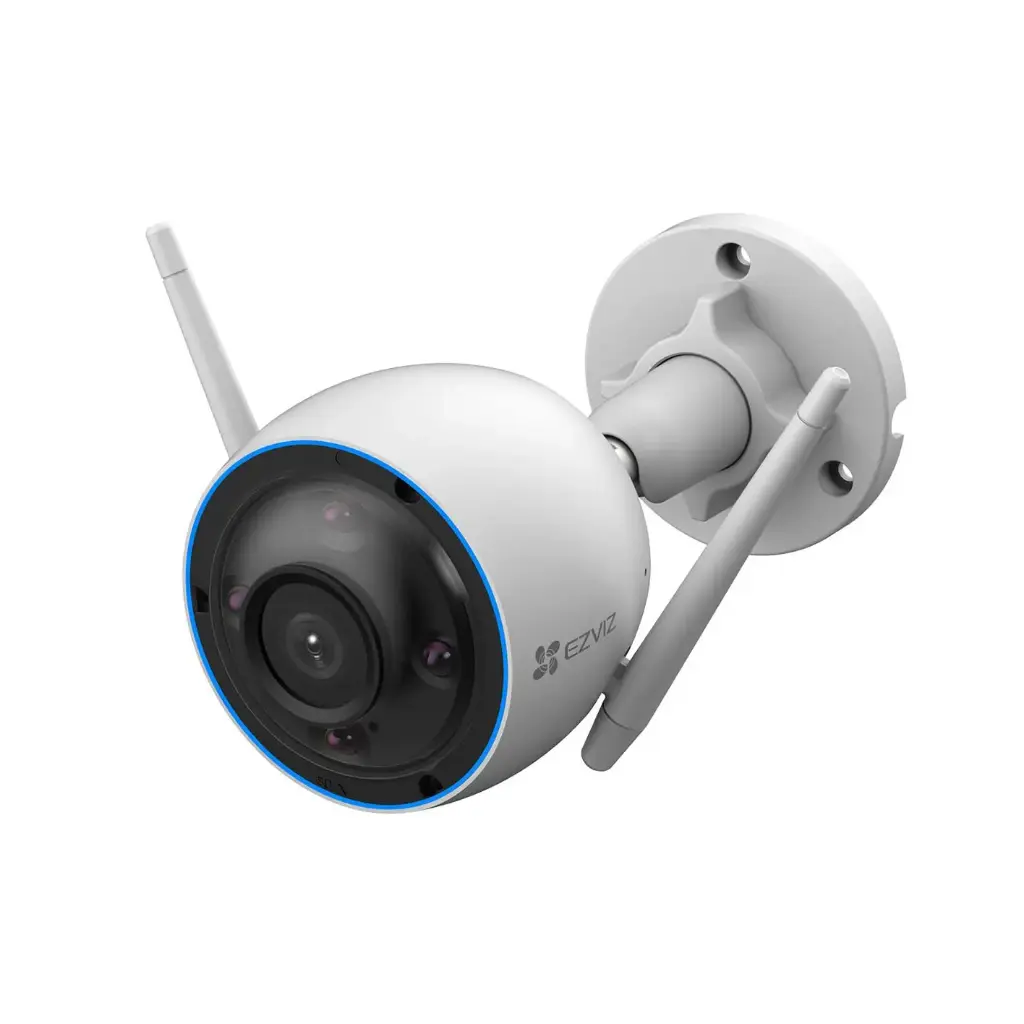

EZVIZ H3 Color 3MP - Outdoor Wi-Fi Smart Home Camera
EZVIZ H3 Color 3MP - Outdoor Wi-Fi Smart Home Camera (H3 Color 3MP) مناسب لمشروعات WIFI CAMERA التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
H3 Color 3MP
| Specifications | |
|---|---|
| Model | CS-H3-R100-1J3WKFL |
| General | |
| Dimensions | 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch) |
| Package Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight | Net weight: 438 g (15.45 oz) With package: 676 g (23.84 oz) |
| IP Grade | IP67 |
| Operating Conditions | -30 °C ~ 60 ºC (-22 °F ~ 140 °F ) Humidity 95% or less (non-condensing) |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm @ F2.0, viewing angle: 122° (Diagonal), 106° (Horizontal), 56° (Vertical) 4mm @ F2.0, viewing angle:102° (Diagonal), 86° (Horizontal), 44° (Vertical) |
| Minimum Illumination | 0.01 lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day / Night Switch | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supports |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 pixels |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Full HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | AI-Powered Human / Vehicle Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| Power | |
| Wiring | Hard-Wired |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 7W |
| In the box | |
| In the box | - EZVIZ H3 2K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Quide | |
| Certifications | |
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
عام
| الموديل | H3 Color 3MP |
|---|
![[H3 Color 3MP] EZVIZ H3 Color 3MP - Outdoor Wi-Fi Smart Home Camera](/web/image/product.template/698/image_256)
