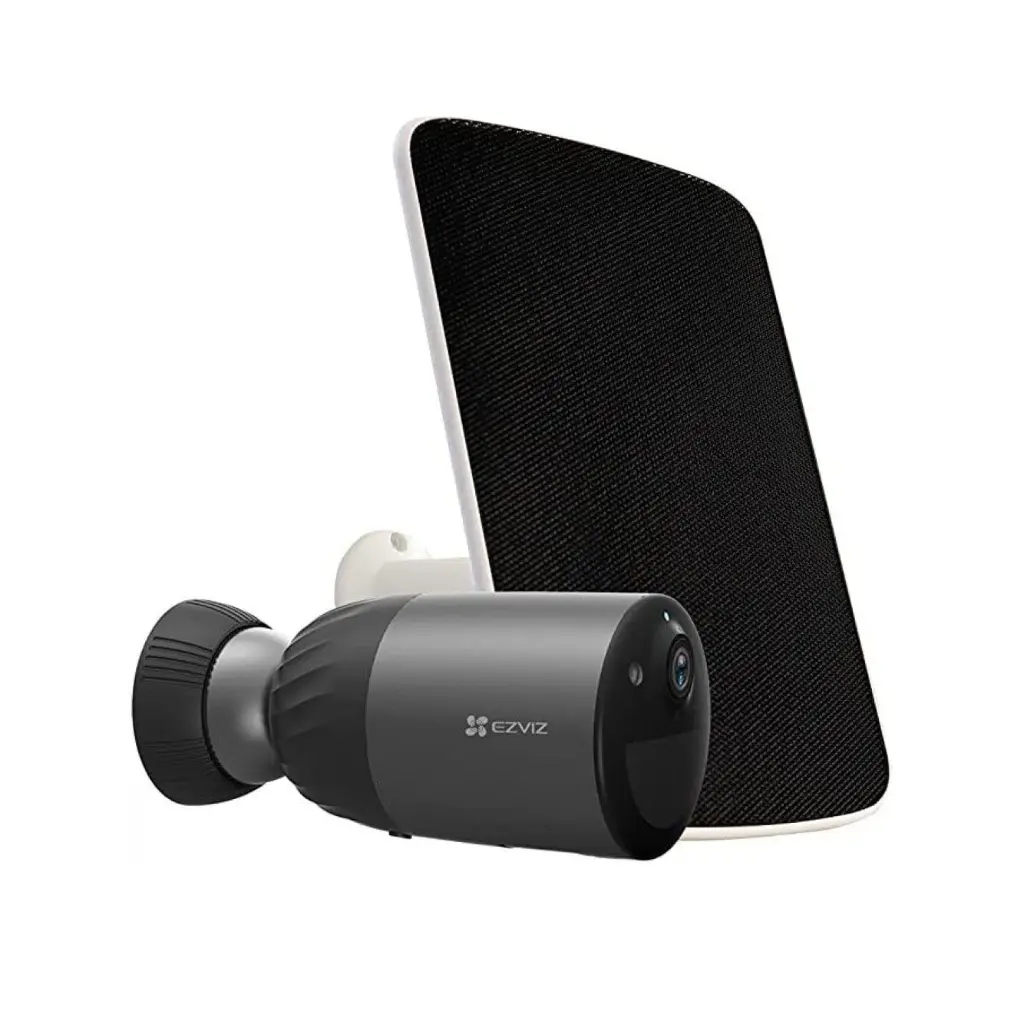

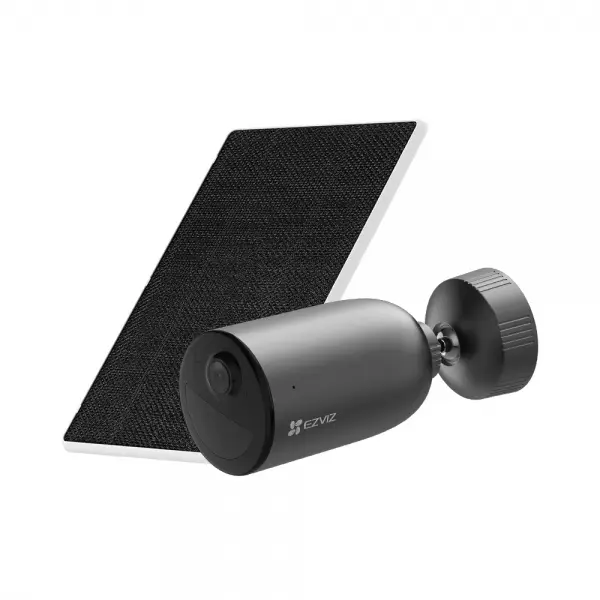

Ezviz EB3 KIT Smart Home Battery Camera + Solar Panel 5w
Ezviz EB3 KIT Smart Home Battery Camera + Solar Panel 5w (EB3 SP 3MP) مناسب لمشروعات Battery Camera التي تحتاج إلى مواصفات واضحة وتوافق عملي مع أنظمة المراقبة أو الشبكات أو التحكم في الدخول، مع دعم دو لينك في مصر.
EB3 SP 3MP
| Specifications | |
|---|---|
| Model | CS-EB3-R200-1K3WFL |
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | Self-adaptive shutter |
| Lens | 2.8mm@ F1.6; 130° (Diagonal), 108° (Horizontal), 56° (Vertical) |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | IR Distance:15m, Color Night Vision Distance:15m |
| Video & Audio | |
| Max. Resolution | 2K (2304 × 1296) |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Qusd-HD; Full HD; Hi-Def; Standard adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Bluetooth | Supports |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK/WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Minimum Network Requirement | 4Mbps |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Battery Capacity | 5200 mAh |
| Power Consumption | Max. 10W |
| Product Dimensions | 153.3 × 62.95 × 62.95 mm (6.04 × 2.48 × 2.48 inch) |
| Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch) |
| Weight | Net weight: 222.7 g (7.86 oz) With Package: 569 g (20.07 oz) |
| Specifications | |
| Model | CS-PSP5-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.7 V |
| Power Current | 877 mA |
| Open Circuit Voltage | 6.9 V |
| Short Circuit Current | 0.92 A |
| Max. Power | 5 W |
| Interface | Type-C |
| Solar Cell Efficiency | 23.50% |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| Product Dimensions | 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch) |
| Packaging Dimensions | 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch) |
| Weight | 656 g (23.14 oz) |
| In the box | |
| In the box | - EB3 Camera |
| - Solar Panel 5W | |
| - Screw Base | |
| - Power Cable | |
| - Drill Template | |
| - Screw Kit × 2 | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
![[EB3 SP 3MP] Ezviz EB3 KIT Smart Home Battery Camera + Solar Panel 5w](/web/image/product.template/743/image_256)
