Hikvision Four Doors Access Controller
DS-K2814

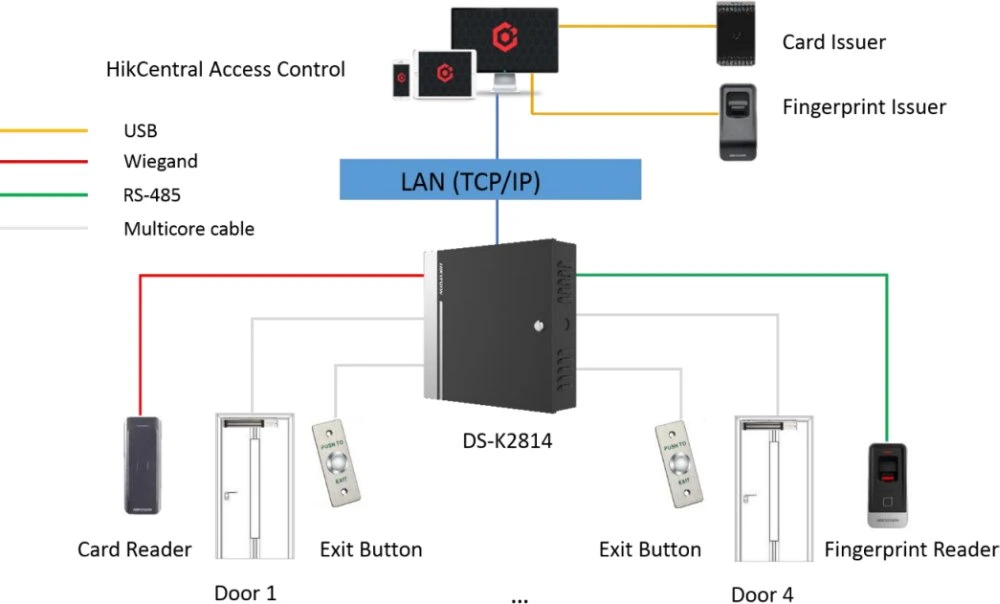

- Supports four doors access control
- Supports multi-door interlocking function, anti-passback function, multi-card function, first person function, super card and super password function
- Supports alarm event upload
- Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports standby battery
- Data can be saved when the access controller is powered off
Specification
Network
Wired network10 M/100 M self adaptive
Interface
- Network interface1
- Lock control4
- Exit button4
- Door contact input4
- Alarm input3
- Alarm output4
- TAMPER1
- RS-4851
- Wiegand4, Wiegand 26/34
Capacity
- Card capacity10,000
- Event capacity50,000
General
- Power supply100 to 240 VAC
- BatteryBackup battery connection available
- Power consumption
With load: ≤ 100 w
Without load: ≤ 4 w
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions370 mm × 345 mm × 90 mm (14.6" × 13.6" × 3.5")
